The project also involved the installation of the system at the customer’s manufacturing facility in Norway.
Collection and storage of detailed test result information was also part of the brief.
Working closely with the DEFA team from the planning phase through to completion, we have built a bespoke end of line test unit based on established Sorion technologies.
The system features two individual working stations, each fitted with the following equipment:

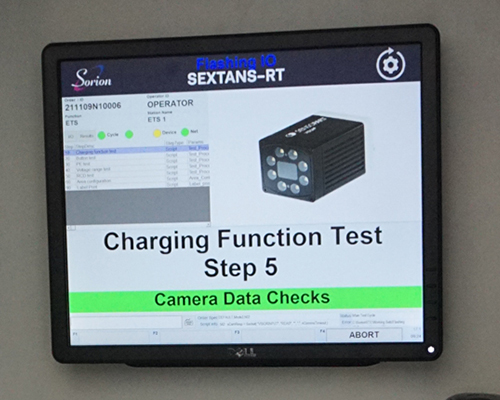

- Vision system to detect the status of the LEDs on the unit
- PC running Sextans process control software
- Fixture to ensure that the unit under test is always held and in the correct place

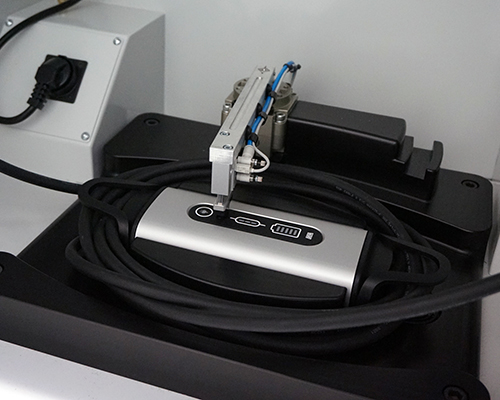

- Pneumatically operated button press system
- Laser engraving device
- Barcode scanner
- Function buttons
- Light guards
The two working stations also share the following hardware: AC PSU, AC Load, label printer, A4 laser printer.
The operator scans the unique ID on the charger, performs a visual inspection, then loads the unit into the fixture and connects the mains Schuko plug and the Type 2 socket.
The system then commences the automated tests by running through the following functionality and safety checks:
- Charging function test
- Button functional test using the automated button presser
- Voltage range test
- PE protection test
- RCD protection test
If the unit passes the test, the system will proceed to the configuration process.
A unique serial number is generated and all test result data will be saved against this number for traceability and data analytics.
The system will then laser etch the serial number to the case.
A rating label is printed for attaching to the rear of the unit. The operator is then instructed to remove the unit and attach the label.
